Model No.: STRONG-SR-7025
Support Customization: Oem, Odm, Obm
Place Of Origin: China
Warranty Period: 2 Years
Packaging: Carton/Wooden Case
Transportation: Ocean,Air,Land,Express,Others
Place of Origin: CHINA
Supply Ability: 150 Sets/Month
Port: Shanghai Port,Ningbo Port
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW,CFR,FCA

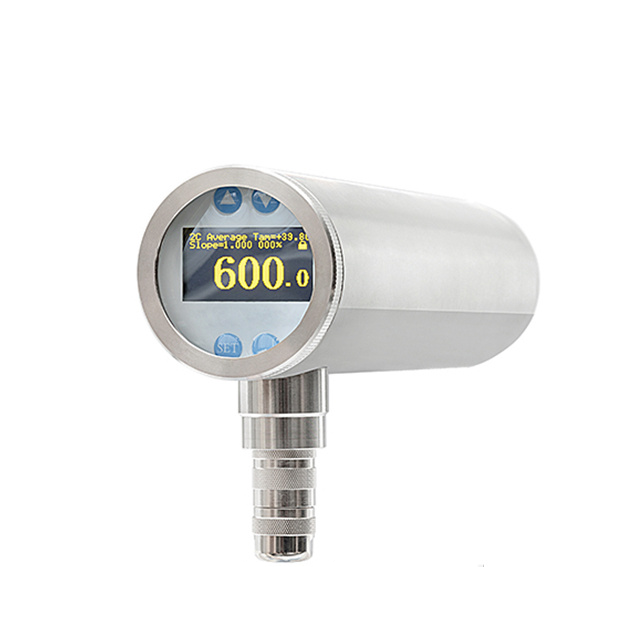

This is a high-precision two-color Fixed Pyrometer equipped with solid cover, stainless steel movement, equipped with stainless steel protection sleeve, IP65 protection grade, a built-in constant temperature heater and whole-process temperature compensation function allow this Industrial Pyrometer more applicable to accurate temperature measurement in various industrial occasions. This series Accuracy Pyrometer have the function of switching between one-color and two-color modes and is rarely affected by emissivity of the measured object, and displayed temperature is basically unchanged even if the target signal decays 95%. This 2-color pyrometer use adjustable focus lens, with high-brightness green LED light source or visual eyepiece aiming, and clearly display the position and size of the measured target. This series infrared thermometer use industrial-grade OLED screen as the display interface, which is user-friendly.
Measuring range:700℃~2500℃
Detector:Si/Si(Laminated silicon)
Distance coefficients:60:1
Measuring Distance:Standard Focus length:0.35m adjustable to infinity,Near focus distance:0.2m~0.5m
Accuracy:±0.5%T℃(T is measured temperature)
Resolution:0.1℃
Repeat Accuracy:±2℃
Response time:Fasted 5ms, adjustable in 5ms-99.99s
Wavelength1:(0.7~1.08)μm Wavelength 2:1.08μm Hot rolled steel, wire rod, metal forging, casting, induction heating, melting glass, cement kiln, semiconductor, vacuum furnace etc. Standard:0.35m adjustable to infinity, Near focus distance:0.2m~0.5m
Model
STRONG-SR-7025
Measuring Range
600℃~1800℃
Detector
Si/Si
One-color mode Wavelength
1.08μm
Two-color mode Wavelength
Applications
Distance coefficients
60:1
Focal length
Accuracy
±0.5%T℃(T is measured temperature)
Resolution
0.1℃
Repeat Accuracy
±2℃
One-color mode: Calibration coefficient
0.100~1.000, Adjustable in 0.001 increments
Two-color mode: Calibration coefficient
0.850~1.150, Adjustable in 0.001 increments
Response time
Fasted: 5ms,adjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
Product Categories : High Temperature Infrared Pyrometer > High-temperature 2-color Ratio Pyrometer
