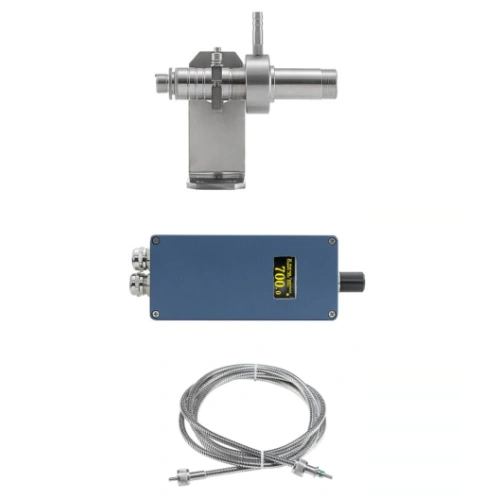

High Temperature fixed Infrared Thermometer Fiber Pyrometer

Get Latest Price

use:

Industrial

principle:

Infrared Thermometer
Temperature Sensor

Accuracy:

0.5%

temperature range:

800℃ - 3000℃

option:

Wavelength: (0.7~1.08) μm

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview
Company Photos
Production Certification

< >

Overview

Product Attributes

Model No.: SMART- FSR-8030

Support Customization: Oem, Odm, Obm

Place Of Origin: China

Warranty Period: 2 Years

Product Name: high temperature radiation pyrometer

Measuring Range: 800 to 3000 celsius

Supply Ability & Additional Information

Packaging: carton/wooden case

Transportation: Ocean,Air,Land,Express,Others

Place of Origin: China

Supply Ability: 150 Sets/Month

Port: Shanghai Port,Ningbo Port

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW,CFR,FCA

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: carton/wooden case

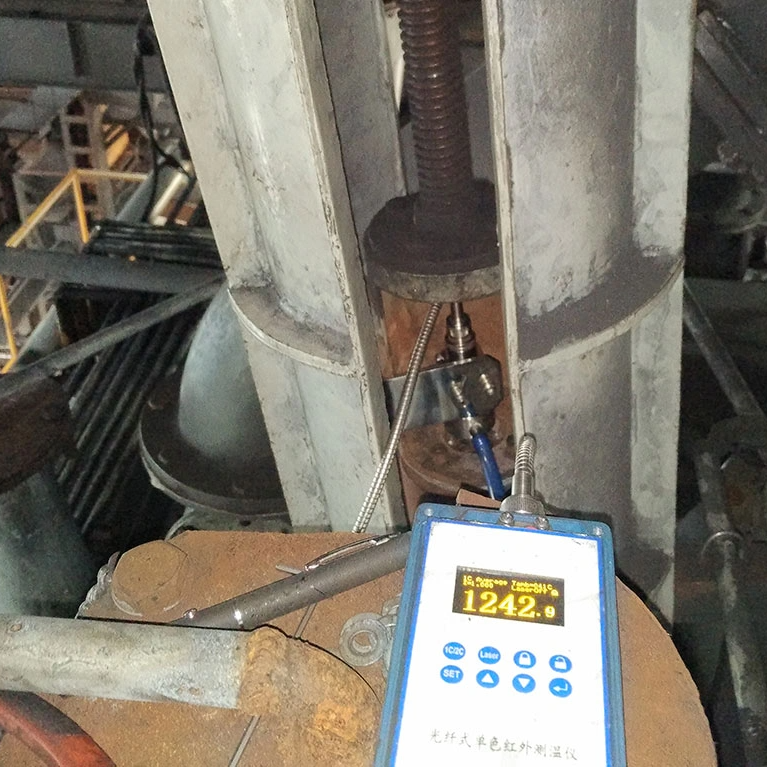

Picture Example:

High Temperature Infrared Radiation Sensor and Pyrometer

Product introduction

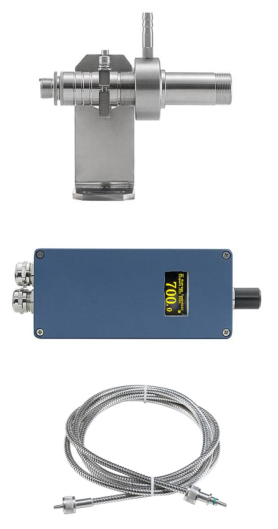

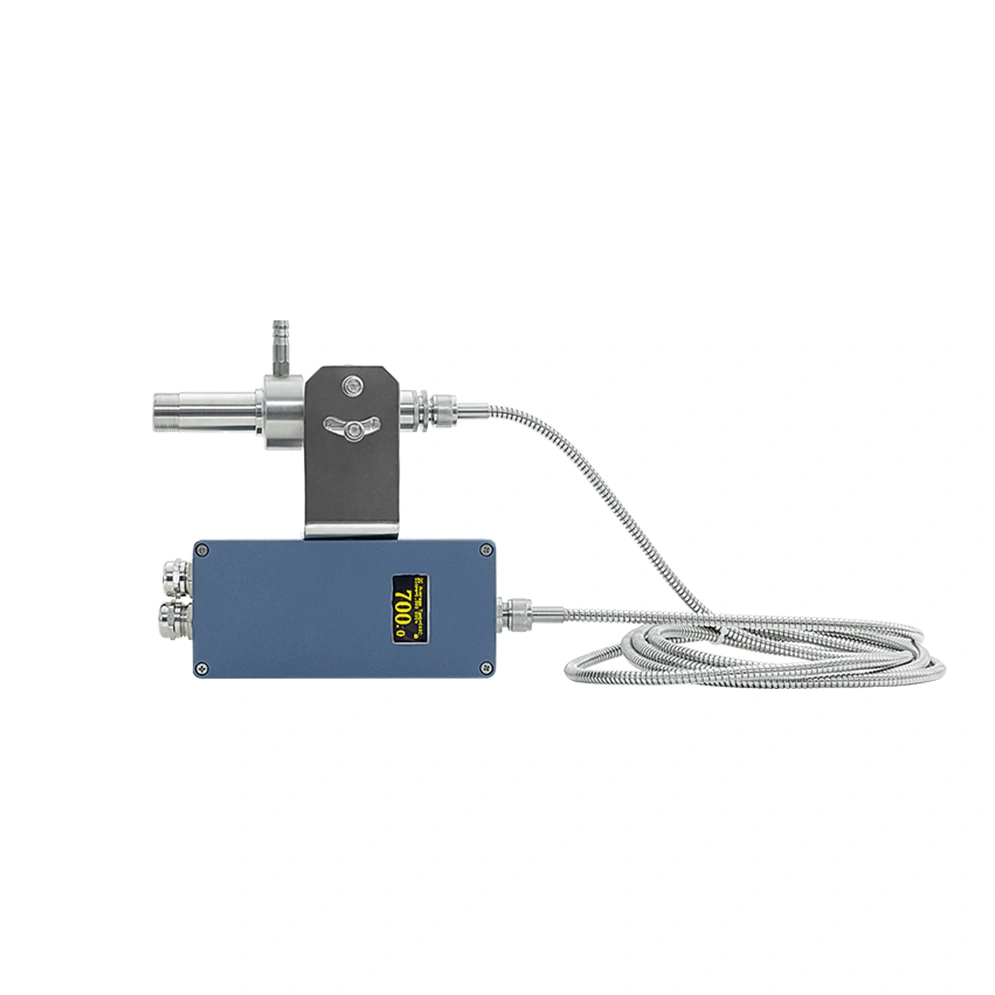

SMART-FSR-8030 Fiber optical infrared pyrometer consists of a lens, optical fiber, and processing components, and can withstand a high temperature of 250 degrees Celsius. The temperature range is 800 degrees Celsius to 3000 degrees Celsius. The design principle of Infrared Pyrometer is based on the infrared radiation energy emitted by the object to determine the temperature of the object. In theory, anything higher than absolute zero can emit infrared radiation. According to the number of measuring wavelength can be divided into monochromatic thermometer, two color infrared pyrometer, multi-color thermometer, SMART-FSR-8030 is a two-color thermometer, this thermometer is especially suitable for measuring small targets, measuring the field of dust, water vapor and fog, measuring distance and near changes and local objects are blocked and other occasions.

Features of SMART series Infrared pyrometer

◆ Temperature measurement range covers 400℃～3000℃

◆ Temperature measurement accuracy is 0.5%, the repeat accuracy is 2℃, and the resolution is 0.1℃

◆ Response time 5ms～99.99s adjustable

◆ Using manual adjustable focus lens, the focal length is adjustable from 0.15m to infinity

◆ Laser aiming is used to clearly show the position and size of measured target

◆ The detector adopts PID constant temperature control and comes with full range temperature compensation to avoid the influence of ambient temperature on measurement accuracy

◆ Both two-color and one-color temperature measurement functions

◆ Industrial-grade OLED screen is used as the display interface, and the man-machine interface is friendly

◆ Abundant peripheral interfaces: 2 independent analog output, 2 alarm output, 1 level output and RS485 communication interface

◆ Anti-interference design such as software and hardware improves system stability and can resist 2500VDC pulse group interference

◆ Supports up to 26 pyrometers in bus cascade, and realizes networked control via PC

Technical Parameters

Model	SMART-FSR-8030
Measuring Range	800℃～3000℃
Detector	Si/Si(Laminated Silicon)
Wavelength	(0.7～1.08) μm
Applications	Continue casting, hot rolling, induction heating, polysilicon, monocrystal silicon, measurement in high temperature environment.
Distance coefficients	200：1
Accuracy	±0.5% tm°C(tm is upper limit of measuring range)
Resolution	0.1℃
Repeat Accuracy	±2℃
One-color coefficient	0.100～1.000, Adjustable in 0.001 increments
One-color coefficient	0.850～1.150,adjustable in 0.001 increment
Response time	Fasted: 5ms，adjustable in 5ms-99.99s
Output	Continue casting, hot rolling, induction heating, polysilicon, monocrystal silicon, measurement in high temperature environment. Group2: Analog outputs 4mA～20mA, resolution 16bit, accurate to 0.1°C, maximum current loop output load 600Ω Alarms output: upper or lower temperature limit alarm；PhotoMOS relay (infinite service life) on resistance≤2Ω, maximum allowed voltage: AC42V or DC60V; maximum allowed current: 120mA; response time: 2ms PNP level output(current output 100mA,with overload protection.) RS485 output,with functions of parameters modification, data logging and inquiry
Display mode	Industrial-grade self-luminous OLED display screen
Aiming method	Built-in red laser aiming
IP Rating	IP54

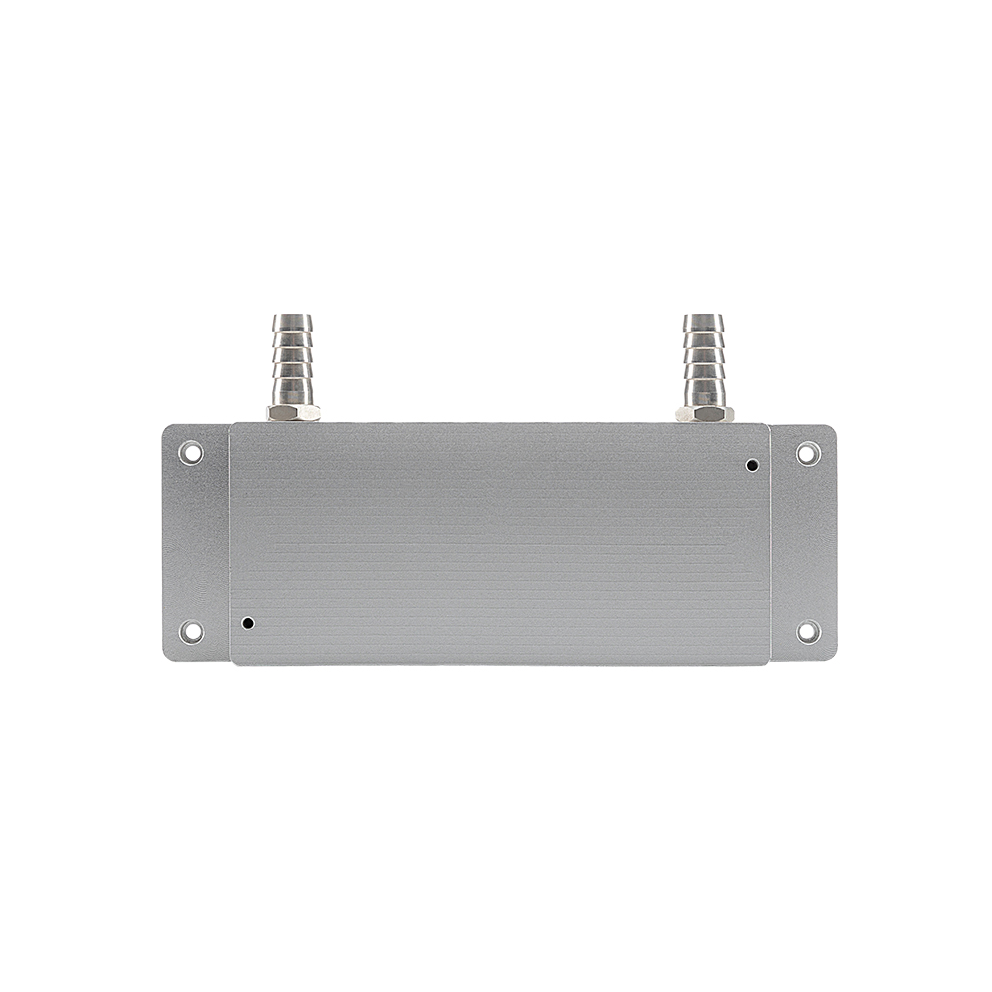

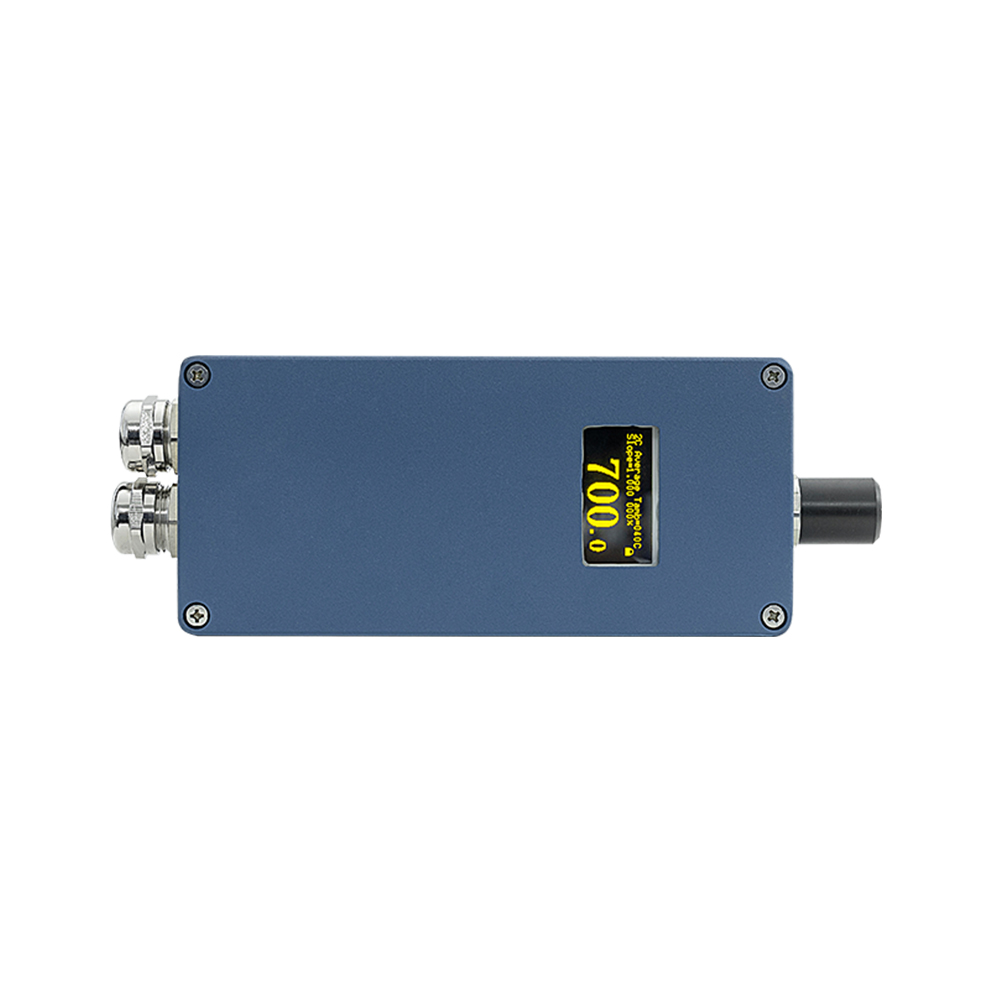

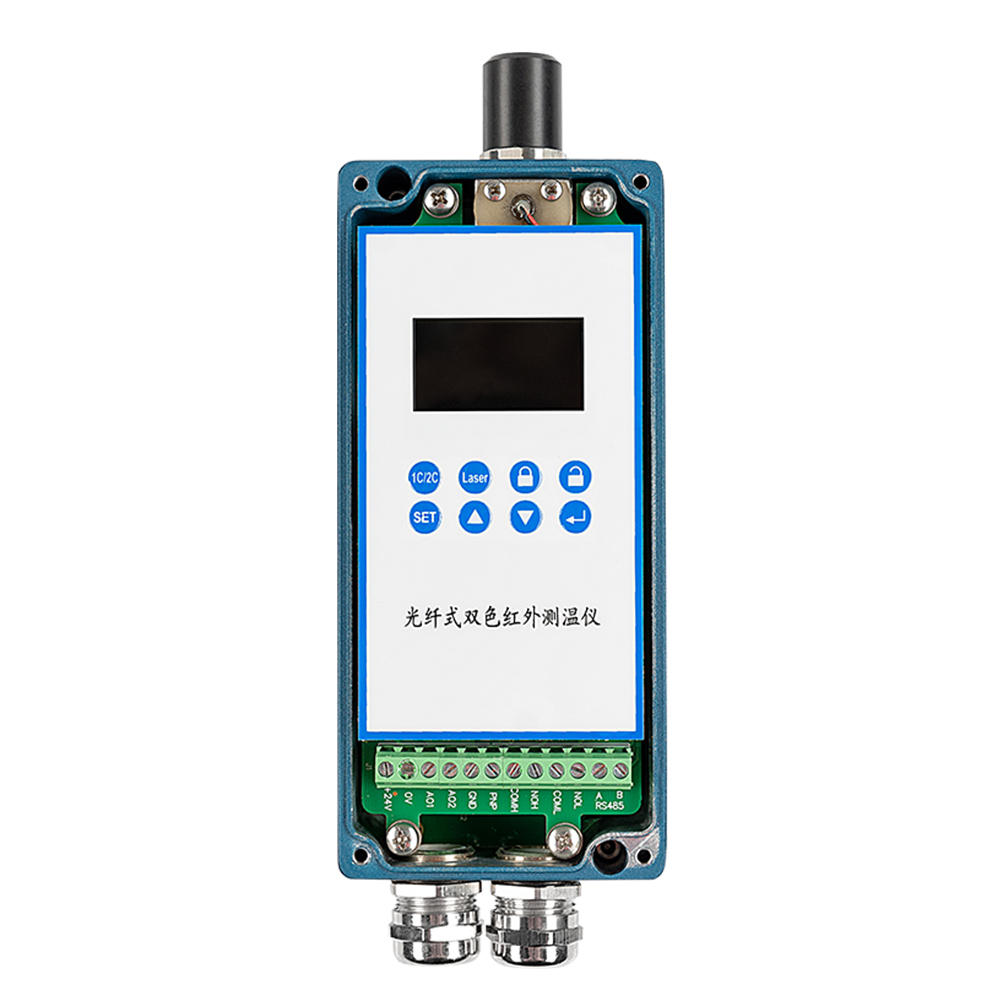

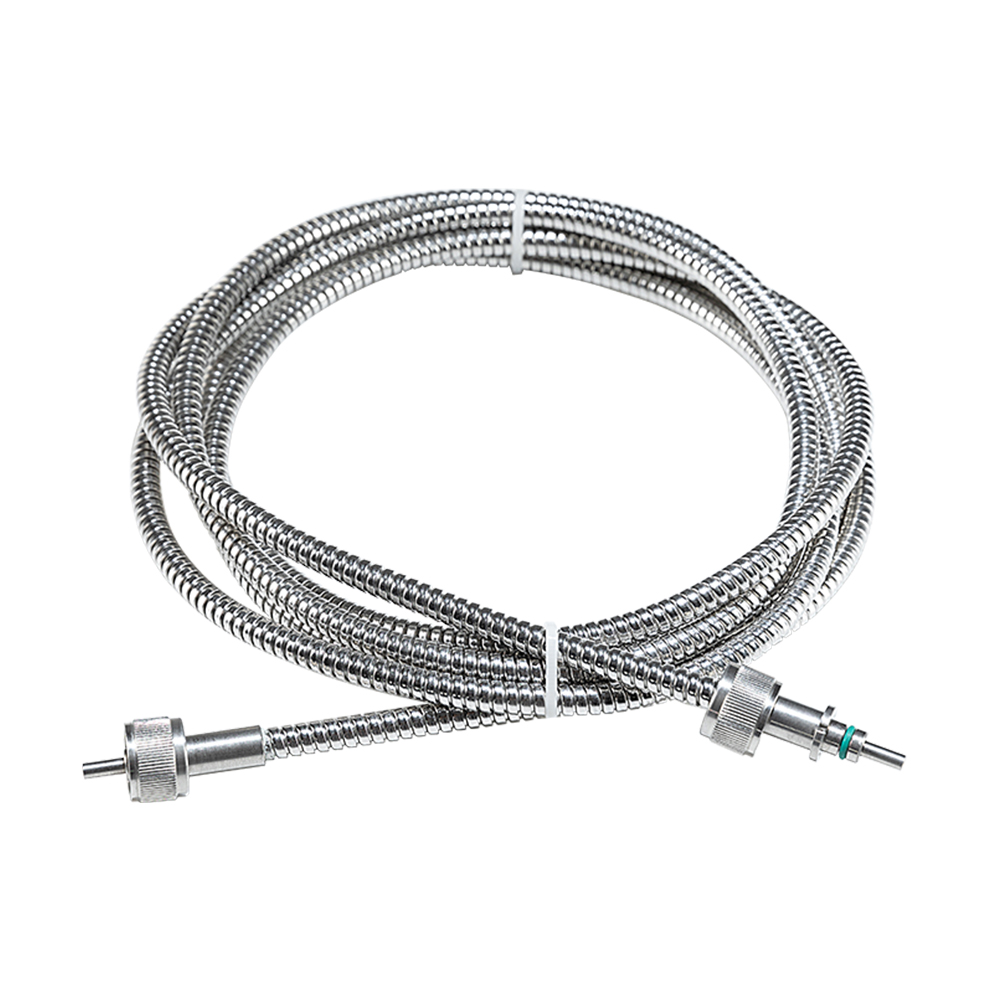

992 5 992 4 992 3 992 1

Applications

Two-color mode is suit for the site with harsh environment (with dust, water vapor and mist), changing distance, small targets, partial obstruction, and other occasions requiring maintenance-free. Two-color mode allows installation angle and measurement direction to be less than 45 degrees. When background temperature is higher than measured temperature, one-color mode is more suitable than two-color mode.

Technical parameter of Two color SMART series radiation pyrometer

Model	SMART- FGR-4014		SMART- FGR-4522	SMART- FSR-6016		SMART- FSR-7025		SMART- FSR-8030
Measuring Range	400～1400		450～2200	600～1600		700～2500		800～3000
Detector	InGaAs/InGaAs			Si/Si(Laminated Silicon)
Wavelength	Wavelength 1:(0.9～1.7)μm, Wavelength 2:1.7μm			Wavelength 1:(0.7～1.08)μm, Wavelength 2:1.08μm
Main Applications	Continue casting, hot rolling, induction heating, polysilicon, monocrystal silicon, measurement in high temperature environment.
Distance Coefficient	50:1	100:1		50:1	100:1		200:1
Measuring Distance	adjustable from 0.15m to infinite
Measuring Accuracy	±0.5% tm°C(tm is upper limit of measuring range)
Resolution	0.1°C
Repeat Accuracy	±2°C
1-color Coefficient	0.100～1.100,adjustable in 0.001 increment
2-color Coefficient	0.850～1.150,adjustable in 0.001 increment
Response Time	Fastest 5ms,5ms-99.99s adjustable
Signal processing	Peak value, valley value, average temperature value; Ambient temperature too high/low alarm; power down protection.
Output	Group1: Multiple analog outputs 16bit(4mA～20mA,0mA～20mA,0V～5V,0V～10V switchable ), output resolution 16bit,accurate to 0.1°C,maximum current loop output load 600Ω,maximum current output load 10mA
	Group2: Analog outputs 4mA～20mA, resolution 16bit, accurate to 0.1°C, maximum current loop output load 600Ω
	Alarms output: upper or lower temperature limit alarm；PhotoMOS relay (infinite service life) on resistance≤2Ω, maximum allowed voltage: AC42V or DC60V; maximum allowed current: 120mA; response time: 2ms
	PNP level output(current output 100mA,with overload protection.)
	RS485 output,with functions of parameters modification, data logging and inquiry
Display Mode	Industrial-grade self-luminous OLED display screen
Power Input	DC(20～30)V,Power consumption:5W(24V@200mA)with over voltage, over current and short circuit protection; with built-in EMI wave filter, resistance to pulse group’s Interference: 2500VDC
Warm up time	With built-in constant temperature heater,start temperature measurement within 10mins after power on.
Aiming Method	Built-in red laser aiming
Operating Environment	No water cooling:-20°C～+60°C；With water cooling:-20°C～+200°C,water cooling pressure: 0.2MPa,flow rate: 2L/min Lens and fiber:-20°C～+250°C(air purge pressure: 0.1MPa,flow rate: 6L/ min)
Port	IP54

Product Categories : High Temperature Infrared Pyrometer > High-temperature 2-color Ratio Pyrometer
