Model No.: STRONG-SR-6016
Support Customization: Oem, Odm, Obm
Place Of Origin: China
Warranty Period: 2 Years
Packaging: carton/wooden case
Transportation: Ocean,Air,Land,Express,Others
Port: Shanghai Port,Ningbo Port
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW,CFR,FCA
We cosider STRONG-SR-6016 2-color infrared pyrometer as a calcium carbide kiln two color pyrometer temperature measurement solution, for 1C pyrometer solution, Fixed Pyrometer MARS-S-6016 could be consider as an alternaltive.

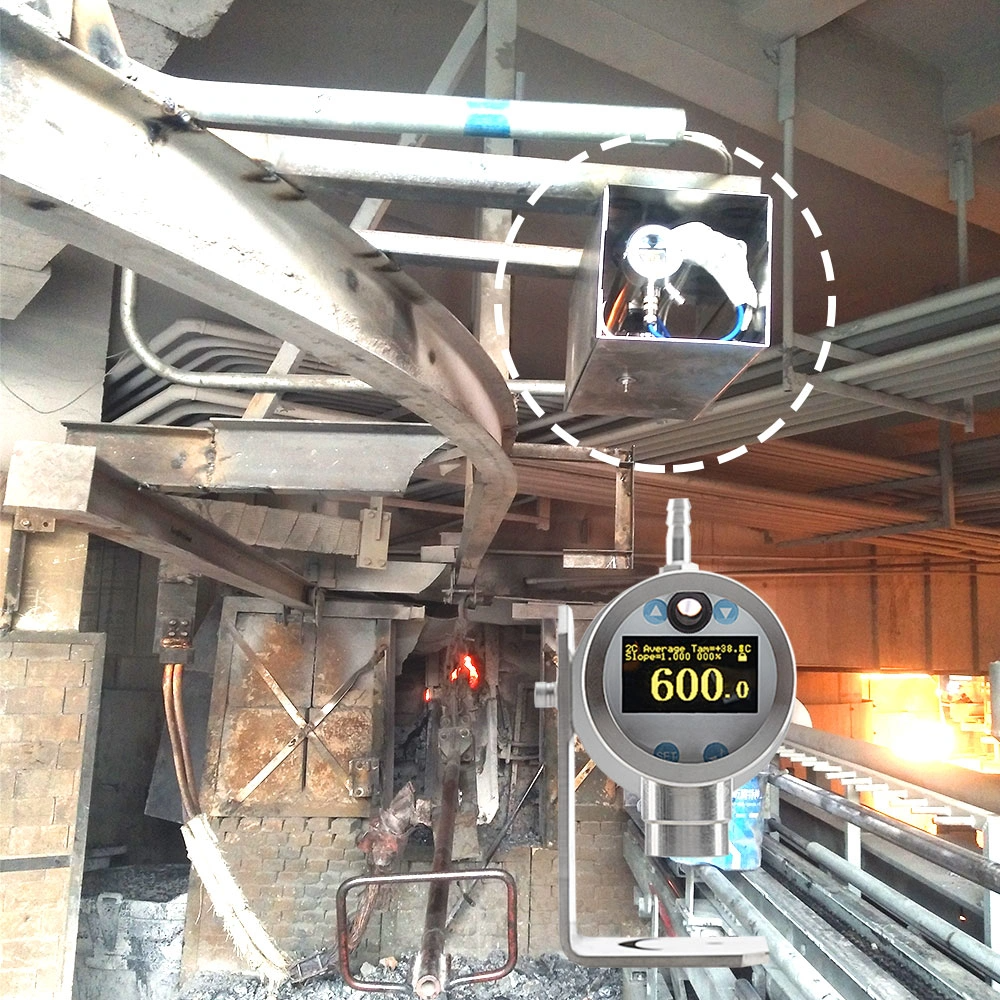

In a calcium carbide kiln, temperature is extreamly high (around 1200℃）and environment is harsh, thermocouple has requirement of use environment and based on its own structure limitation, in the temperature change fluctuations and vibration occasions, resulting in thermocouple temperature measurement is not accurate, reaction lag, can not react change the temperature accurately in time.
The thermocouple works in the high temperature area of 1200℃ ~ 1400℃ for a long time, and the ambient temperature of the thermocouple junction box is as high as 100 ~ 120℃, resulting in a very short service life of the couple, ranging from a few weeks to a few months. Increased use cost and maintenance workload.
For economical purpose, user can also consider 1-color infrared pyrometer, model MARS-S-6016.
Features
Measuring Range: 600℃～1600℃
Detector：Si/Si（Laminated silicon）
Distance coefficients：60：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Wavelength1：（0.7～1.08）μm Wavelength 2：1.08μm Hot rolled steel, wire rod, metal forging, casting, induction heating, melting glass, cement kiln, semiconductor, vacuum furnace etc. Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m
Model
STRONG-SR-6016
Measuring Range
600℃～1600℃
Detector
Si/Si
One-color mode Wavelength
1.08μm
Two-color mode Wavelength
Applications
Distance coefficients
60：1
Focal length
Accuracy
±0.5%T℃（T is measured temperature）
Resolution
0.1℃
Repeat Accuracy
±2℃
One-color mode: Calibration coefficient
0.100～1.000, Adjustable in 0.001 increments
Two-color mode: Calibration coefficient
0.850～1.150, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
Product Categories : Mid Temperature Infrared Pyrometer > Mid-temperature 2-color Ratio Pyrometer
