Digital Laser 2 Color Pyrometer for Hot-blast Furnace

use:
Accuracy:
temperature range:
Share:
  • Product Description
Overview
Product Attributes

Model No.BFS-STRONG-SR-6018(Non Explosion-proof)

Support CustomizationOem, Odm, Obm

Place Of OriginChina

Warranty Period2 Years

Supply Ability & Additional Information

Packagingcarton/wooden case

TransportationOcean,Air,Land,Express,Others

Place of OriginChina

Supply Ability150 Sets/Month

PortShanghai Port,Ningbo Port

Payment TypeL/C,T/T

IncotermFOB,CIF,EXW,CFR,FCA,Express Delivery,DDU,DDP

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
carton/wooden case
Picture Example:

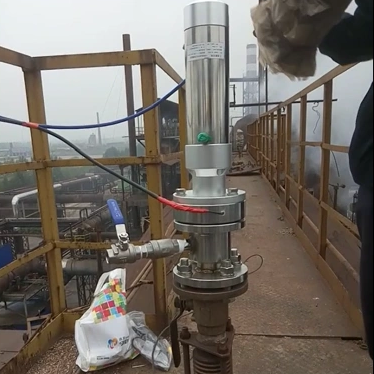

Digital laser two color pyrometer fixed stove use

 This pyrometer is a two color Non-Explosion Proof Type Pyrometer, it belongs to our furance use pyrometer (Industrial Pyrometer) series. Model BFS-STRONG-SR-6018 is mid temperature 2-color  ratio pyrometer , we also provide customized service for different temperature range accodrding to application.

    1. This Infrared Pyrometer/Infrared Thermometer is Fixed Pyrometer applied to measure high temperature objects in heating furnace or hot air furnace. It is a Accuracy Pyrometer equipped with explosion proof, 2-color Pyrometer (Ratio Infrared Pyrometer) determines the temperature of an object by measuring the ratio of energy at two different wavelengths.

  2. Thermocouple thermometry is the most traditionally method to detect temperature in furnaces. This methodmeasure central temperature in the furnace indirectly by measuring the temperature near insulation wall with fabricated platinum rhodium-platinum thermocouple or double platinum rhodium thermocouple.

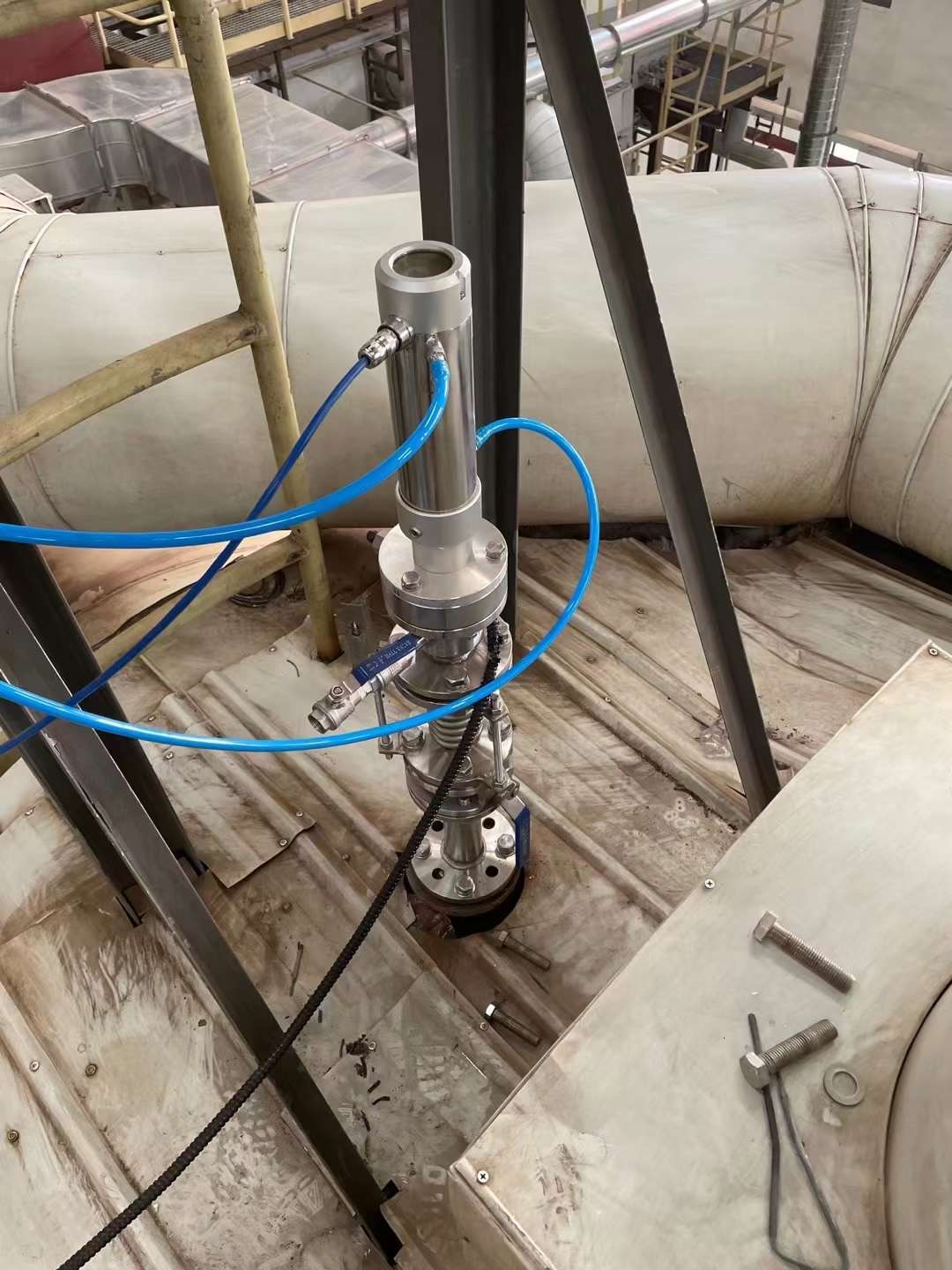

Sludge incinerator furnace infrared pyrometer

    3. Conditions in furnace are always tough alone with high temperature and high pressure. Limited to the requirements of operation environment and instrument’s structure, thermocouple thermometry would result in inaccurate measurement and lag reaction when works in harsh condition such as frequently temperature changes, large pressure fluctuations and event in vibration.


Technical Parameters

Model
BFS-STRONG-SR-6018(Non-explosion-proof)
Measuring Range
600℃1800℃
Detector
Si/Si(Laminated silicon)
One-color mode Wavelength
1.08μm
Two-color mode Wavelength

Wavelength1:(0.71.08μm

Wavelength 21.08μm

Applications

Apply to measuring high temperature objects in heating furnace or hot air furnace.

Distance coefficients
601
Focal length

Standard0.35m adjustable to infinity

Near focus distance0.2m0.5m

Accuracy
±0.5%T℃T is measured temperature
Resolution
0.1℃
Repeat Accuracy
±2℃
One-color mode: Calibration coefficient
0.1001.000Adjustable in 0.001 increments
Two-color mode: Calibration coefficient
0.8501.150Adjustable in 0.001 increments
Response time
Fasted: 5msadjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65







Product Categories : Hot Blast Stove 2-Color Pyrometer > Non-Explosion Proof Type Pyrometer

Company Overview
Changzhou Sijie Optoelectronics Technology Co., Ltd. is a high technology enterprise integrating R&D, manufacture, sale and after-sale service, our main products include non-contact infrared pyrometer, infrared gas analog instrument, industrial automation detector, etc.Sijie optoelectronics holds multiple self-intellectual property rights, related to infrared measurement core technology, based on decades of researching and development accumulation. we are continuous providing products with stable and reliable quality. Which benefit from Implement strict and comprehensive quality control based on product design, parts selection, supplier selection, product assembly, finished product inspection, after-sales service as well as strong technical force, mature production process, advanced experimental equipment, complete production facilities.Our company's main products are STRONG-series dual-color pyrometer, monochrome pyrometer, SMART-series fiber optic dual-color pyrometer, monochrome pyrometer, MARS-series monochrome pyrometer. Products are widely used in metallurgy, heat treatment, chemical, power, photovoltaic, cement, glass, refractory, crystal material production and other industries, well received by our end-users.Adhering to the business philosophy of "improving quality by innovation and creating value for customers", Sijie optoelectronics focuses on the field of infrared photoelectricity measurement and will wholeheartedly provide customers with high-quality products and professional services.
