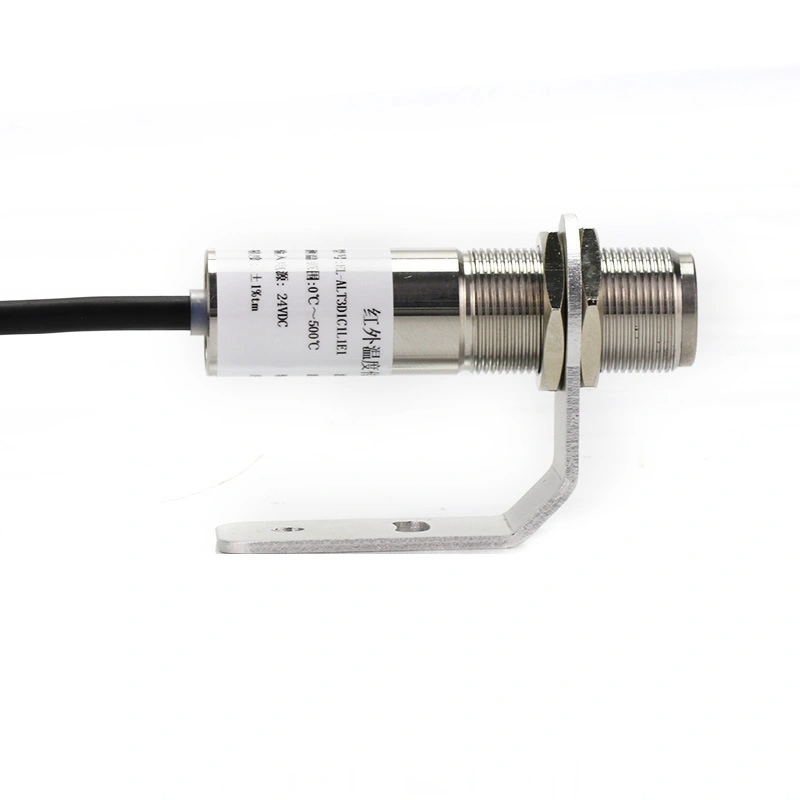

Small on-line compact fixed pyrometer -20C~800C (subsection)

Small on-line compact Fixed Pyrometer -20C~800C (subsection)

1. Overview

GD10 series Infrared Pyrometer is an integrated infrared pyrometer. The sensor, optical system and electronic circuit are integrated in the metal shell. The GD10 series are easy to install, with standard threads on the metal housing for quick connection to the installation site; At the same time, GD10 series also has various optional parts (such as purging protective sleeve, 90° adjustable mounting bracket, three-dimensional adjustable mounting bracket, etc.) to meet the requirements of various working conditions.

2. Installation distance and measurement size
The precise optical lens and optical focus design make the spot diameter pyrometer 13mm when measurement distance within 100mm, spot size will increase with the increase of the distance, such as spot diameter 60mm at 1.2m. The ratio of pyrometer distance to spot size is also called optical resolution.
The optical resolution of the GD10 series is 20:1, and the corresponding spot size can be approximated by a ratio of distance to spot size of 20:1.

3. Technical Parameters

Physical description
● Basic performance
    Protection: IP65 (NEMA-4)
    Ambient temperature: -10 ~ 60℃
    Storage temperature: -20 ° C to 80 ° C
    Relative humidity 10 ~ 95% (no dew)
    Material:  stainless steel
    Size:  100 mm x Φ 18 mm
    able length: 1.5m (standard), 3m, 15m and special specifications (custom)
● Electrical parameters
    Working power supply： 12 ~ 24VDC
    Maximum load：500Ω
    Output signal： linear from 4 to 20mA

● Measurement parameters
    Spectral range:  8 ~ 14um
    Temperature range:  -20 ~ 800℃ (subsection)

    Optical resolution: 20:1
    Response time: 300ms(95%)
    Emissivity: 0.95 fixed
    Temperature measurement accuracy:  ±1%tm or ±1.5℃
    Repeatability ±0.5%tm or ±1℃

4. The installation
● Electrical installation

4. The installation

Main Application

Pipe temperature real-time control

Production line temperture detection
