1. Overview

GD10 infrared pyrometer can calculate the surface temperature of the object by measuring the intensity of infrared radiation emitted by the object without touching the target. The biggest advantage of non-contact infrared thermometers is that users can easily measure objects that are difficult to reach or move.

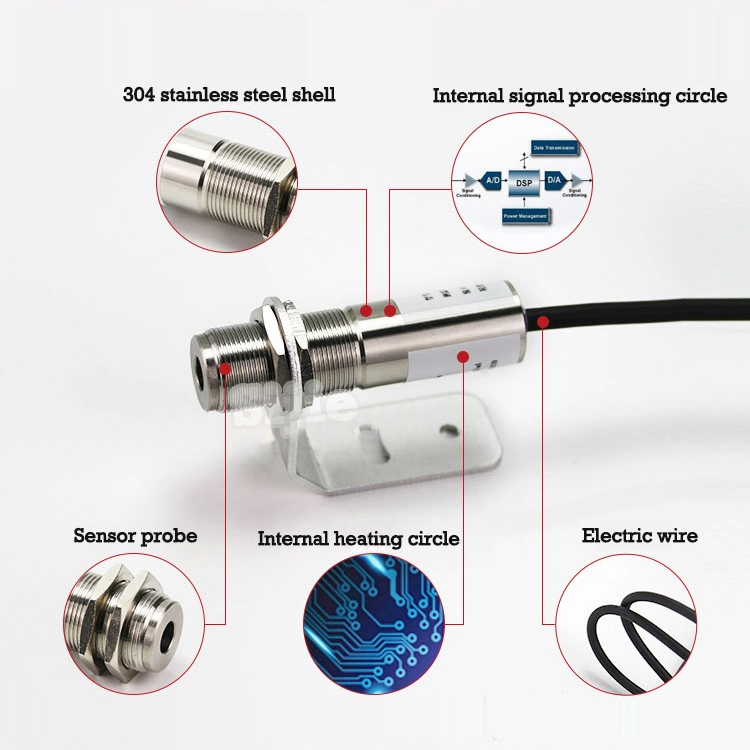

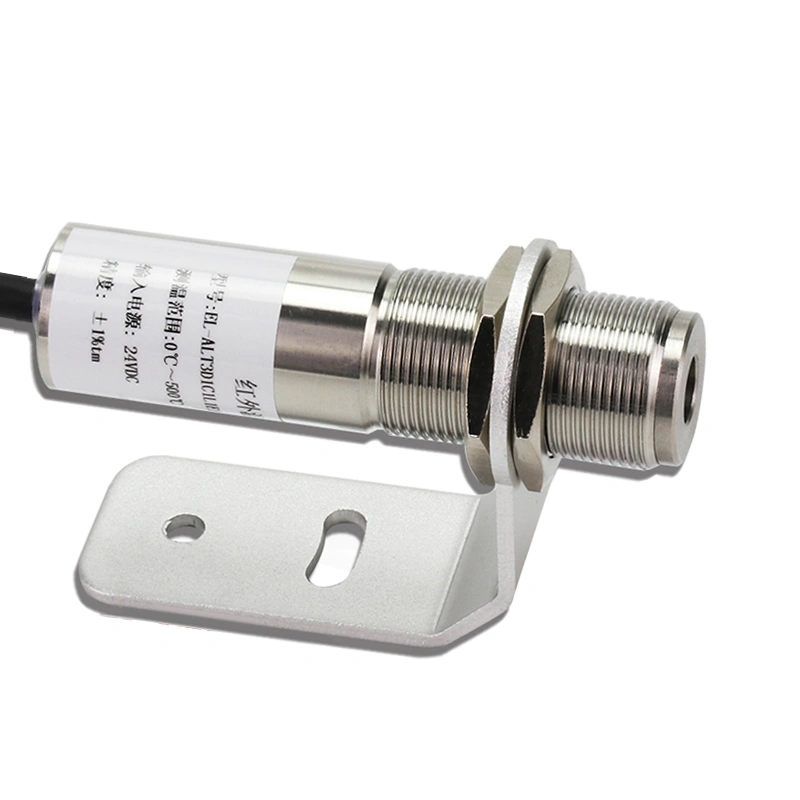

GD10 series infrared pyrometer is an integrated infrared pyrometer. The sensor, optical system and electronic circuit are integrated in the metal shell. The GD10 series are easy to install, with standard threads on the metal housing for quick connection to the installation site; At the same time, GD10 series also has various optional parts (such as purging protective sleeve, 90° adjustable mounting bracket, three-dimensional adjustable mounting bracket, etc.) to meet the requirements of various working conditions.

2. Installation distance and measurement size

The field-of-view (FOV) of a pyrometer determines its area of measurement or spot size in relation to its target. This can be further described as the ratio between the pyrometer’s optical resolution and its focal distance. For example, GD10 optical resolution is 20:1, if the focal distance is 600mm, the target size should be diameter 30mm.

3. Technical Parameters

Physical description
● Basic performance
    Protection: IP65 (NEMA-4)
    Ambient temperature: -10 ~ 60℃
    Storage temperature: -20 ° C to 80 ° C
    Relative humidity 10 ~ 95% (no dew)
    Material:  stainless steel
    Size:  100 mm x Φ 18 mm
    able length: 1.5m (standard), 3m, 15m and special specifications (custom)
● Electrical parameters
    Working power supply： 12 ~ 24VDC
    Maximum load：500Ω
    Output signal： linear from 4 to 20mA

● Measurement parameters
    Spectral range:  8 ~ 14um
    Temperature range:  -20 ~ 800℃ (subsection)

    Optical resolution: 20:1
    Response time: 300ms(95%)
    Emissivity: 0.95 fixed
    Temperature measurement accuracy:  ±1%tm or ±1.5℃
    Repeatability ±0.5%tm or ±1℃

4. The installation
● Electrical installation

4. The installation

Main Application

Pipe temperature real-time control

Production line temperture detection
